This Air Suspension System is specifically designed for the 1971-1972 Chevrolet & GMC C10 Truck and includes everything needed to create modern driveability with an ultra low show stance. The package contains front upper and lower control arms, 2.5" drop spindles, front air springs with adjustable shocks, front sway bar, rear StrongArms with C-Notces, an adjustable panhard bar and HQ Series rear Shockwaves. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension.
TheUpper & Lower StrongArmsfeature corrected ball joint angles and increased caster to improve high speed stability and steering feel. They are powdercoated black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

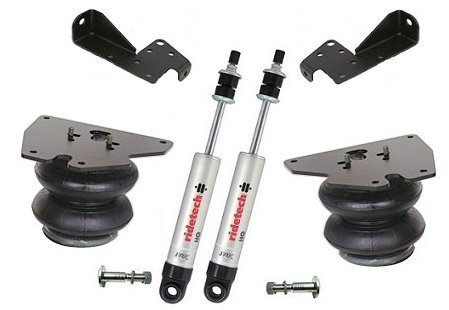

The Front CoolRide setup includes HQ Series Shocks and bolt-on upper shocks mounts to allow more ground clearance and maximum suspension travel. The aluminum body shocks are a monotube design, are rebound adjustable and come with a 1,000,001 Mile Warranty.
The Rear StrongArm System is completely bolt-on and provides mounting for the rear Shockwaves. The front trailing arm crossmember is designed to allow the exhaust to be run through it rather than under it providing additional ground clearance. The panhard is adjustable so you can optimize your tire clearance at the new lowered height and the mount has been relocated to optimize the bar length and angle for the lowered height. This helps keep the rearend centered in the truck and lowers the roll center to mimize body roll. We use R-Joints on both ends of the bar. The C-notches are included with the kit and FIT the frame rail. The trailing arms optimieses the driveline angles for the lowered stance and utilize R-Joint at the front attachment.
HQ Series Shockwavesutilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty.

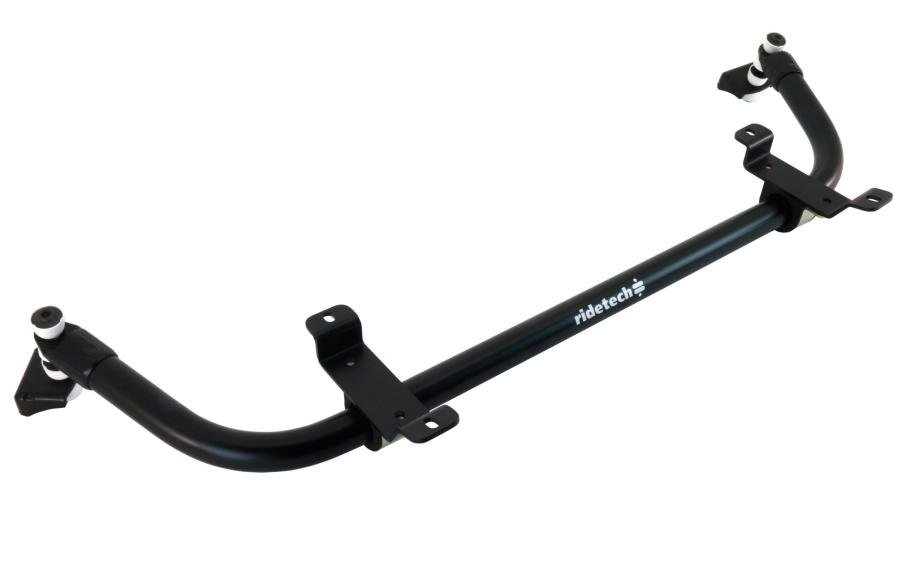

ThisFront MucleBarhelps reduce body roll and includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.
To complete this Air Suspension system please choose from one of our Compressor Systems .
WARNING: Cancer and Reproductive Harm
Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil and leaf springs, tubular control arms, roll bars, sway bars and much more.
| Download Name | File Size |
| 11340298_11350298_r-joint_composite1.pdf | 3.88MB |
| Make | Model | Years |
| Chevrolet | C10 Pickup | 1971 - 1972 |
| GMC | C15/C1500 Pickup | 1971 - 1972 |
