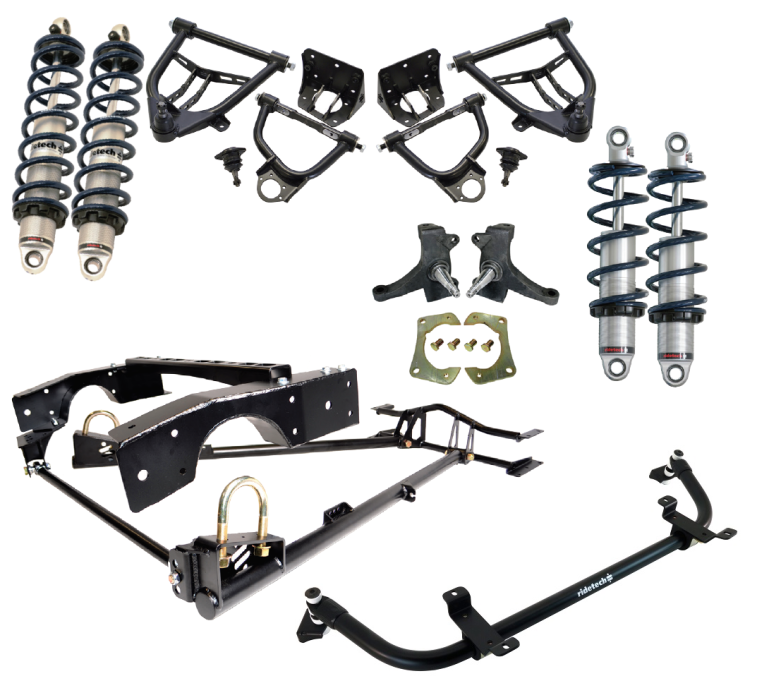

This Coil-Over System is specifically designed for the 1963-1970 Chevrolet & GMC C10 Truck and includes everything needed to provide a lowered stand and excellent ride quality and handling. The package contains front upper and lower control arms, 2.5″ drop spindles, front and rear HQ Series Coil-Overs, front sway bar, rear StrongArms with C-Notches, and adjustable panhard bar. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension.

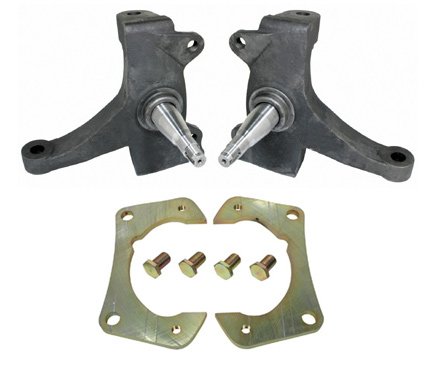

- 2.5″ Drop Spindles allows a lowered stance while maintaining suspension travel. The modular design allows for variety of brake options including Baer, Wilwood or the stock HD brakes (1.25″ wide rotors).
- Compatible with both short and long bed models.

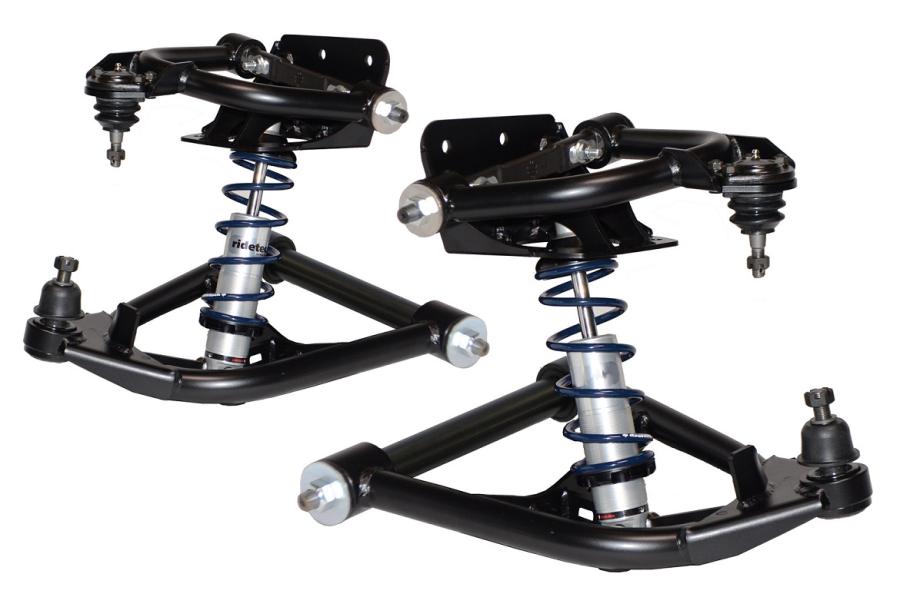

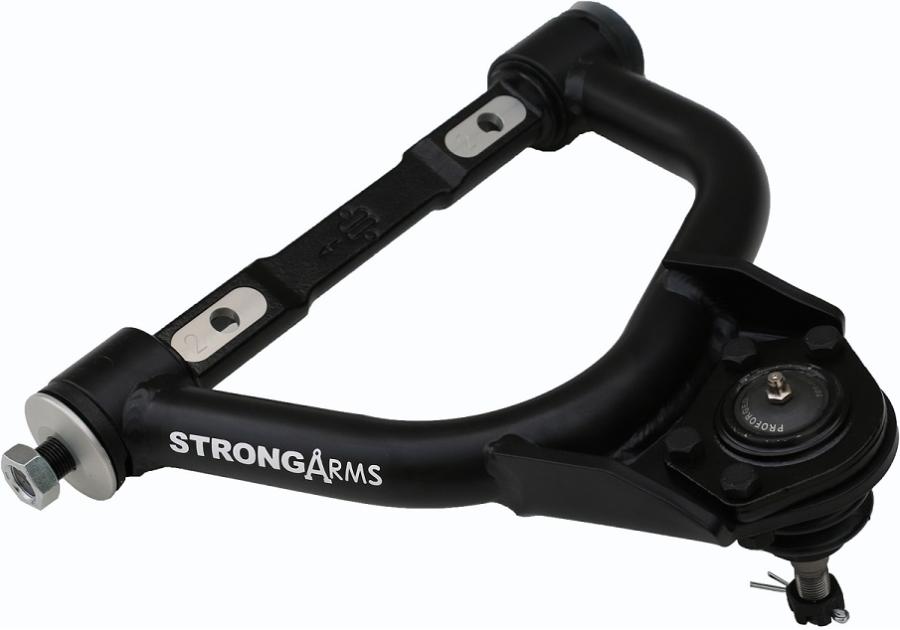

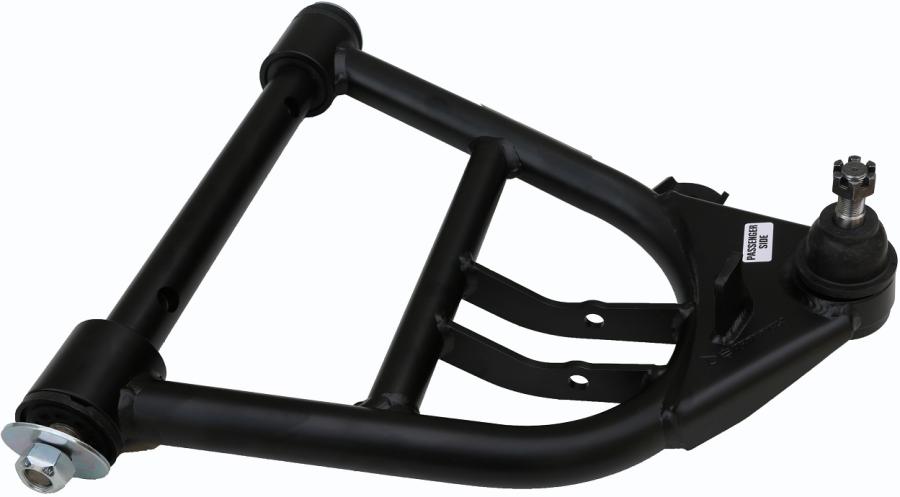

- Upper & Lower StrongArms feature corrected ball joint angles and increased caster to improve high speed stability and steering feel. They are powder coated black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

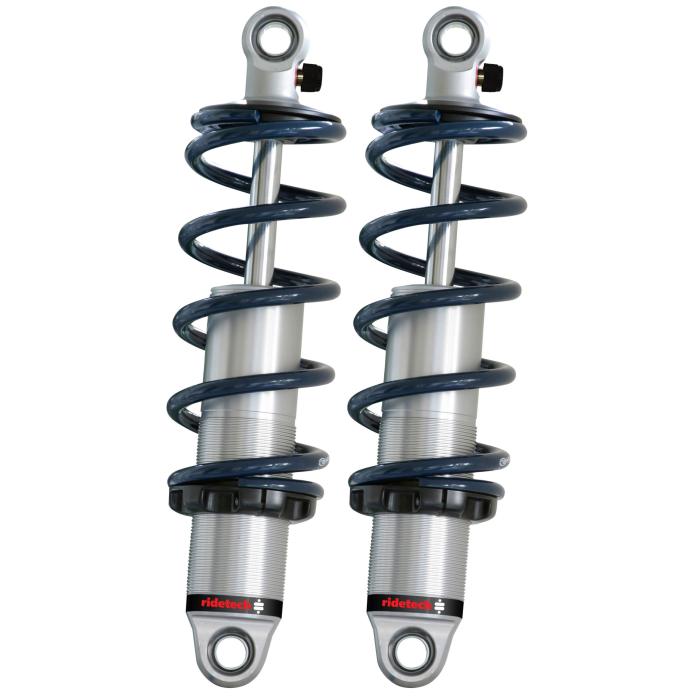

- HQ Series Coil-overs utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Interested in AutoCross or Road Course Racing? Consider the TQ Series CoilOvers.

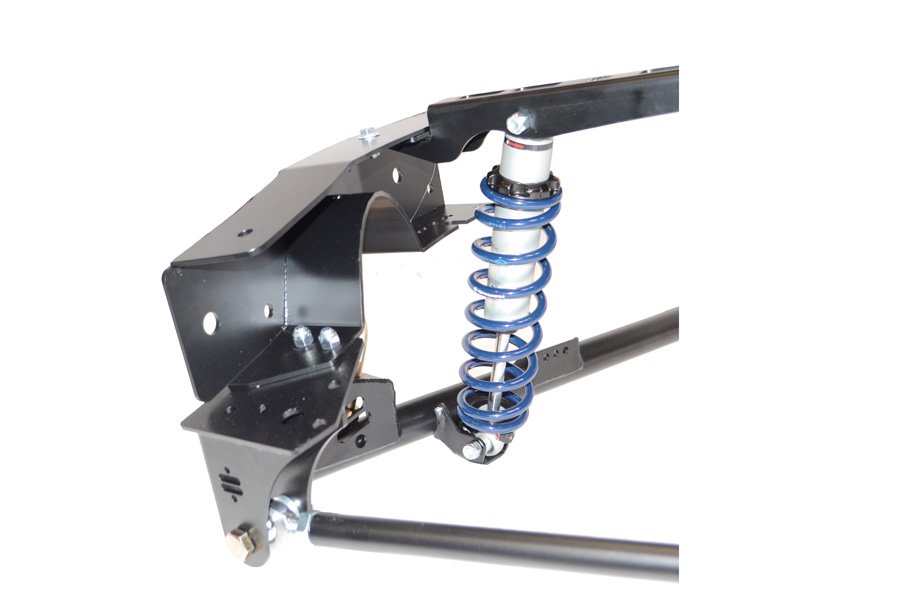

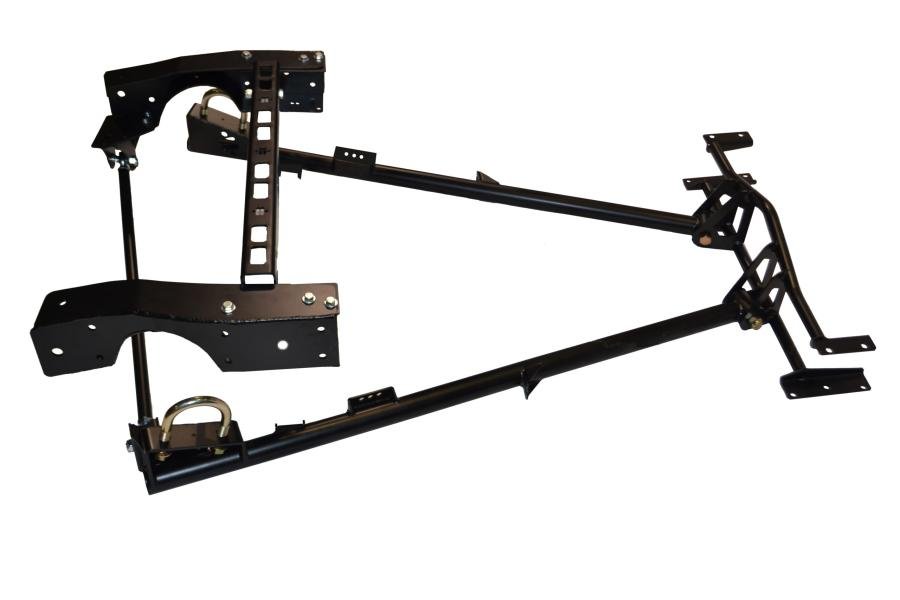

- Rear StrongArm Systemis completely bolt-on and provides mounting for the rear Coil-Overs. The front trailing arm crossmember is designed to allow the exhaust to be run through it rather than under it providing additional ground clearance. The panhard is adjustable so you can optimize your tire clearance at the new lowered height and the mount has been relocated to optimize the bar length and angle for the lowered height. This helps keep the rear end centered in the truck and lowers the roll center to minimize body roll. We use R-Joints on both ends of the bar. The C-notches are included with the kit and FIT the frame rail. The trailing arms optimizes the driveline angles for the lowered stance and utilize R-Joint at the front attachment. Compatible with all bed and cab configurations (requires use of 1 piece drive shaft.) *Shim kit required for installation in wood bed applications.
- Front MuscleBar Sway Bar is manufactured from massive 1.5″ x .250″ wall tubing to minimize body roll and includes billet aluminum frame straps (anodized black) and low friction bushings.
OPTIONS:
- Bed Floor- Choose you bed floor option, if wood floor is chosen additional spacers are included.
About Ridetech
Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil and leaf springs, tubular control arms, roll bars, sway bars and much more.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
Fitment Notes |
| Chevrolet |
C10 Pickup |
1963 - 1970 |
RWD Models |
| GMC |
1000 Series |
1963 - 1965 |
RWD Models |
| GMC |
1000 |
1966 |
RWD Models |
| GMC |
1500 Series |
1963 - 1965 |
RWD Models |
| GMC |
1500 |
1966 |
RWD Models |
| GMC |
C15/C1500 Pickup |
1970 |
|
| GMC |
C15/C1500 Pickup |
1967 - 1969 |
RWD Models |
| GMC |
I1500 |
1966 |
RWD Models |
| GMC |
K15/K1500 Pickup |
1966 |
RWD Models |
