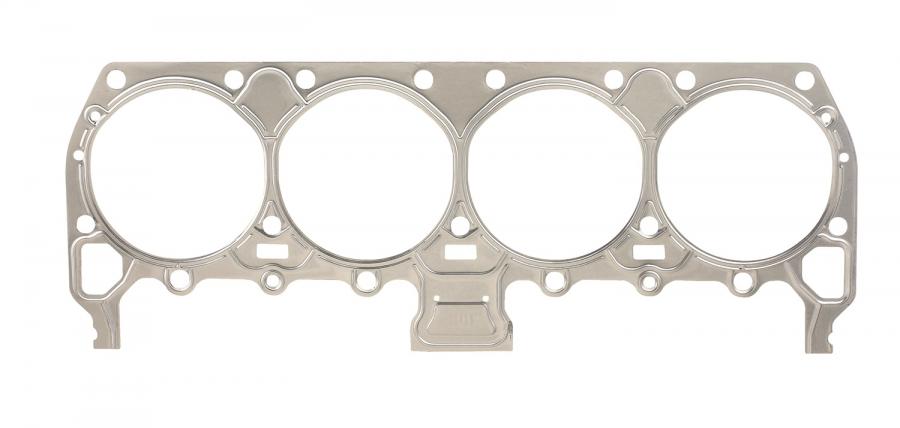

Mr. Gasket Steel Shim Head Gasket 1135G

Mr. Gasket Steel Shim Head Gasket 1135G
$59.99 ea
NEWARRIVING SOONEstimated Ship Date 04/23/2025 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/03/2025
Model: 4010769
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Mr. Gasket Steel Shim Cylinder Head Gaskets are for high performance street machines, drag racing and oval track racing. With today's extreme compression ratios you need stronger more durable gaskets. Mr. Gasket steel shim gaskets are made from .020 inch steel shim stock which is thinner than most composite gaskets increasing engine compression. Stress formed embossments will seal the extreme cylinder pressure.
Features:
  • Manufactured from .020" steel shim stock.
  • Thinner than composition head gaskets - increases engine compression.
  • Stress formed embossments seal extreme cylinder pressures.
  • For high performance street, drag race and oval track use.
Note: Steel Shim Gaskets are not recommended for use with aluminum cylinder heads since the endorsements in the gasket will cause indents in the deck surface of the heads.
Installation Notes:
Note: Steel Shim Gaskets are not recommended for use with aluminum cylinder heads since the endorsements in the gasket will cause indents in the deck surface of the heads.

Downloads:

Download Name File Size
97140221.pdf145KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Dodge D100 Pickup 1968 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 Pickup 1969 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 Pickup 1970 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 Pickup 1971 6.6L / 400 / V8
6.3L / 383 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 Pickup 1972 6.6L / 400 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 Pickup 1973 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 Pickup 1974 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 Series 1963 5.2L / 318 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 Series 1967 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 1975 7.2L / 440 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 1976 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 1977 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D100 1978 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D150 1977 6.6L / 400 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D150 1978 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 Pickup 1968 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 Pickup 1969 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 Pickup 1970 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 Pickup 1971 6.6L / 400 / V8
6.3L / 383 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 Pickup 1972 6.6L / 400 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 Pickup 1973 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 Pickup 1974 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 Series 1963 5.2L / 318 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 Series 1967 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 1975 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 1976 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 1977 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D200 1978 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 Pickup 1968 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 Pickup 1969 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 Pickup 1970 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 Pickup 1971 6.3L / 383 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 Pickup 1972 6.6L / 400 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 Pickup 1973 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 Pickup 1974 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 Series 1963 5.2L / 318 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 Series 1967 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 1975 7.2L / 440 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 1976 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 1977 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge D300 1978 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge M300 1974 7.2L / 440 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge M350 1974 7.2L / 440 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge Ramcharger 1974 5.9L / 360 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge Ramcharger 1975 7.2L / 440 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge Ramcharger 1976 7.2L / 440 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge Ramcharger 1977 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge Ramcharger 1978 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W100 Pickup 1968 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W100 Pickup 1969 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W100 Pickup 1970 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W100 Pickup 1971 6.6L / 400 / V8
6.3L / 383 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W100 Pickup 1974 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W100 Series 1963 5.2L / 318 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W100 Series 1967 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W100 1975 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W100 1976 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W100 1977 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W150 1977 6.6L / 400 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W150 1978 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W200 Pickup 1969 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W200 Pickup 1970 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W200 Pickup 1971 6.6L / 400 / V8
6.3L / 383 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W200 Pickup 1974 6.6L / 400 / V8
7.2L / 440 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W200 Series 1963 5.2L / 318 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W200 Series 1967 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W200 1975 7.2L / 440 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W200 1976 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W200 1977 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W200 1978 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W300 Pickup 1968 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W300 Pickup 1969 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W300 Pickup 1971 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W300 Series 1967 6.3L / 383 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W300 1975 7.2L / 440 / V8 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W300 1976 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W300 1977 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Dodge W300 1978 7.2L / 440 / V8
6.6L / 400 / V8		 HEAD GASKET; STEEL SHIM; EMBOSSED; 4.400 IN. GASKET BORE; 0.020 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;

Specifications:

Application Chrysler Big Block
Compressed Thickness .020 inch
Compression Ratio Up to 14:1
Emission Code 5
Engine Chrysler Big Block B/RB
Gasket Bore 4.400 inch
Gasket Line Performance
Material Steel Shim
Packaging Retail
Part Type Engine Cylinder Head Gasket
Product Type Head Gasket
Quantity Per Pkg. 1
Warranty Limited 90 Day TX, Limited 90 Day
Weight 0.5000
