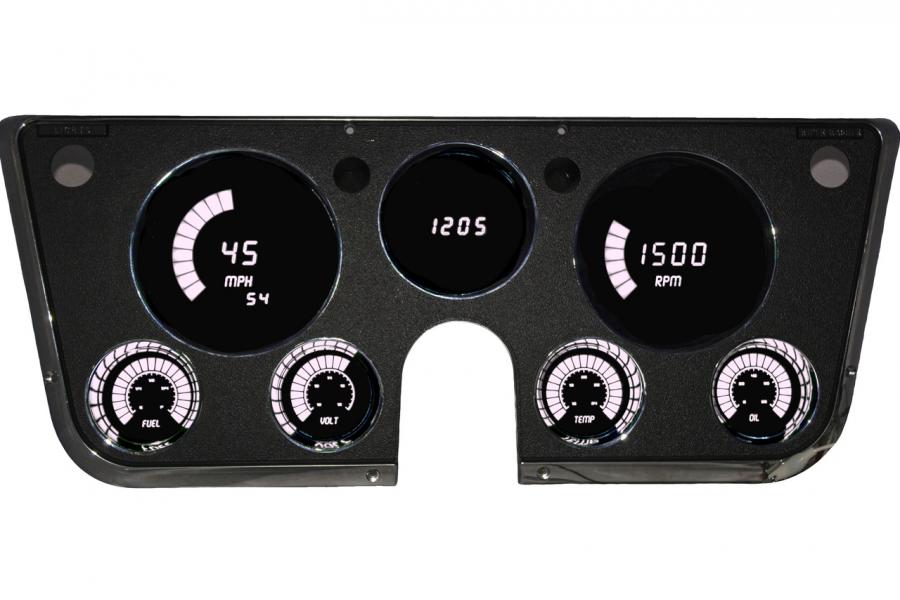

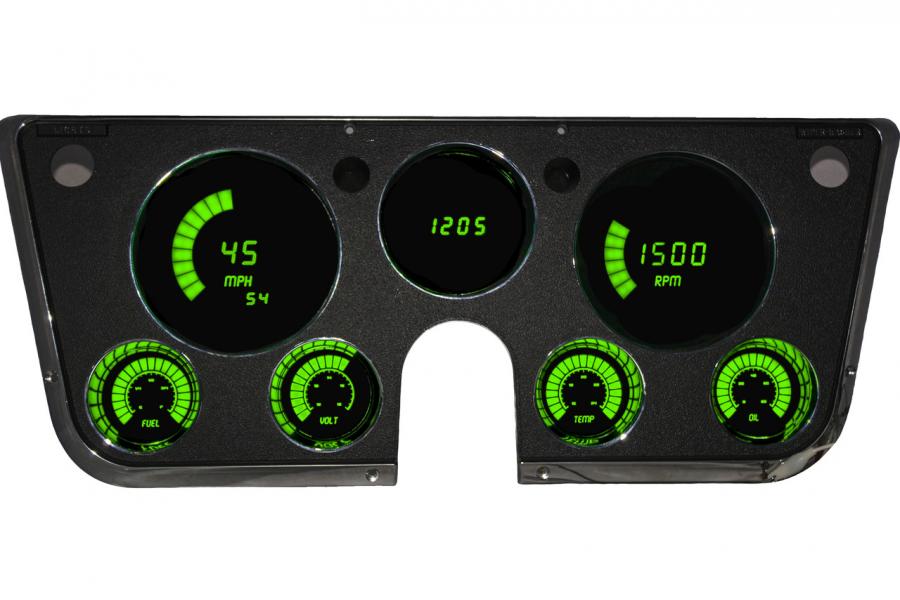

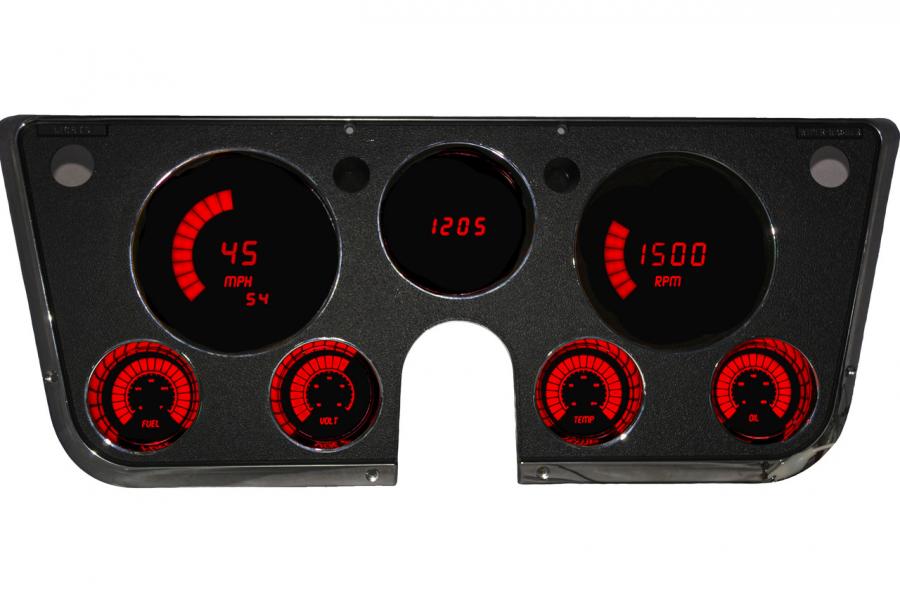

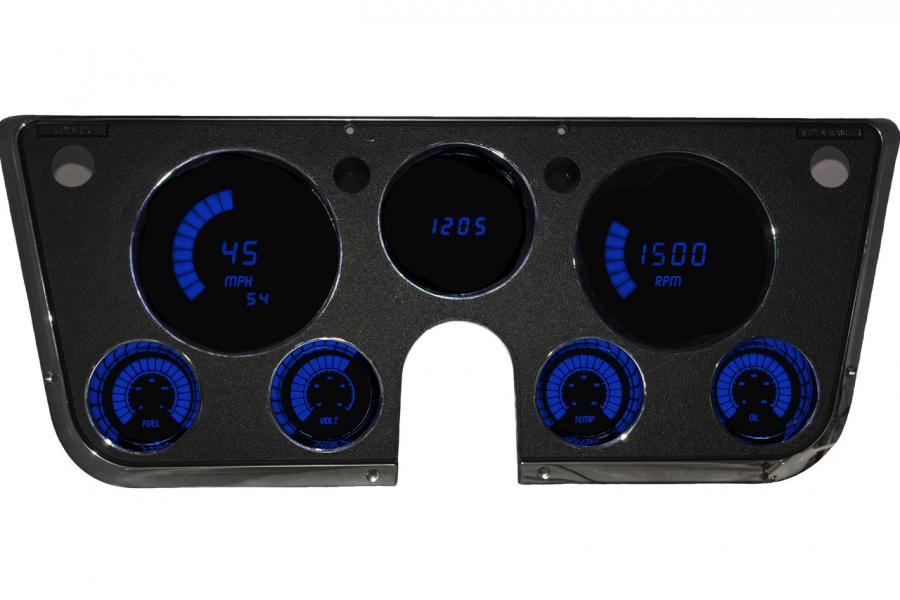

1967-72 Chevy Truck LED Digital Bargragh Gauge Panel - BG6003
Your vintage 1967-72 Chevy Truck will be the talk of the town with a new 67-72 Chevy Truck LED Digital Bargragh Direct Fit Dash Panel Replacement by Intellitronix. Fully loaded with direct fit printed circuit boards, custom fit "smoked" Plexiglas faceplate, universal temperature, oil pressure, and speedometer sending units for vehicles without electronic transmission or cruise control, and instructions for installation.
A custom-designed LED bargraph is microprocessor controlled with peak rpm memory recall, and automatic night dimming, shift light, and RPM activated switch that can handle 3 amps. It also includes in-dash mounting hardware and installation instructions. It has a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). It works on 1-2-4-6-8-10-12-cylinder engines. Red is best for night driving. Size dimensions are 3 3/8 inches in diameter and 1 ½ inches deep.
The Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 with universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
Temperature display reads 160° to 240°F range. Sender S8013 is included. Please add a note if you need a 3/8" bushing, because we send the more common 1/2" bushing--otherwise, you will have to supply the bushing on your own.
The Oil Pressure display reads 0-80 PSI range plus Oil Pressure sender is included.
Voltmeter display with 12-16 volt range and no sending unit is required.
Fuel Level display with Empty to Full in 1/4 increments works with most existing fuel level sending unit. The gauge is set at industry standard 0-90. Please include a note in your order, if your sender works off a different Ohms range.
The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
Intellitronix Corp is an industry leader, manufacturing LED lighting and microprocessor-controlled LED products, which are first-class, energy-saving devices for the automotive electronic, marine, and recreational vehicle markets. Intellitronix has a wide range of best-selling automotive electronics, accessories, and digital gauges sold and distributed internationally. Intellitronix’s products are manufactured in a state-of-the-art facility in Eastlake, Ohio using top-quality materials and specialized equipment.
LEDs have become the powerhouse of the lighting world surpassing traditional light bulbs, television and computer screen illumination, being seen in trendsetting applications like headlights and taillights in cars, trucks, and daytime running and off-road lighting. Not only does Intellitronix understands the power and importance of utilizing LEDs but has the genius and expertise to put this knowledge into practice.
In addition, Intellitronix products have dominated areas of the marine industry with the creation of a unique, more efficient GPS controlled marine speedometer, and its Prometheus Ignition System to guard against ignition failures. The RV market is benefiting from Intellitronix new 4-IN-1 Energy Management Multifunctional System (EMMS) for recreational vehicles. The 4-in-1 unit incorporates energy management and load shedding, a breaker panel, automatic transfer switch, automatic generator starter plus display unit, Bluetooth, WiFi and multiplexing capabilities.
| Make | Model | Years |
| Chevrolet | Blazer | 1969 - 1972 |
| Chevrolet | C10 Panel | 1967 |
| Chevrolet | C10 Pickup | 1967 - 1972 |
| Chevrolet | C10 Suburban | 1967 - 1972 |
| Chevrolet | C20 Panel | 1967 |
| Chevrolet | C20 Pickup | 1967 - 1972 |
| Chevrolet | C20 Suburban | 1967 - 1972 |
| Chevrolet | C30 Pickup | 1967 - 1972 |
| Chevrolet | El Camino | 1967 - 1972 |
| Chevrolet | K10 Pickup | 1967 - 1972 |
| Chevrolet | K10 Suburban | 1967 - 1972 |
| Chevrolet | K20 Panel | 1967 |
| Chevrolet | K20 Pickup | 1967 - 1972 |
| Chevrolet | K20 Suburban | 1967 - 1972 |
| Chevrolet | K30 Pickup | 1968 - 1972 |
| Chevrolet | Luv Pickup | 1972 |
| Chevrolet | P10 Series | 1967 |
| Chevrolet | P20 Series | 1967 |
| Chevrolet | P30 Series | 1967 |
| Color | Red, Blue, Green, White |
| Speedometer & Temperature | MPH & Fahrenheit, KMH & Celsius |
| Warranty | LIFETIME FACTORY WARRANTY |
