1964-66 Chevy Truck LED Digital Gauge Panel - DP6002

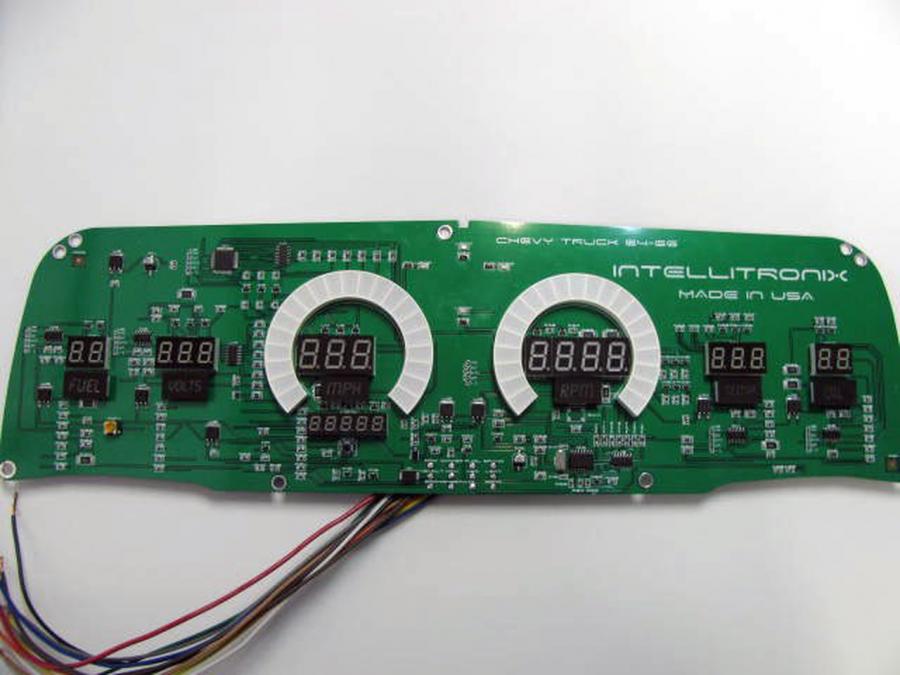

Your 1964-66 Chevy Truck will be the talk of the town with Intellitronix 64-66 Chevy Truck LED Digital Gauge Replacement Dash. Welcome to the next stage of innovation mixed with ingenuity. Comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
The Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
Tachometer displays 0-9900 RPM in 100 RPM increments.
Water Temperature displays 100-300°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out.
The Oil Pressure displays 0-100 PSI range. Oil pressure sender included.
Voltmeter displays 7.0-25.5 volt range and no sending unit is required.
Fuel Level displays with 0-99% range in 1% increments and works with existing GM fuel level sending unit.
The 1964-66 Chevy Truck LED Digital Gauge Replacement Panel does NOT fit GMC trucks.
The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED

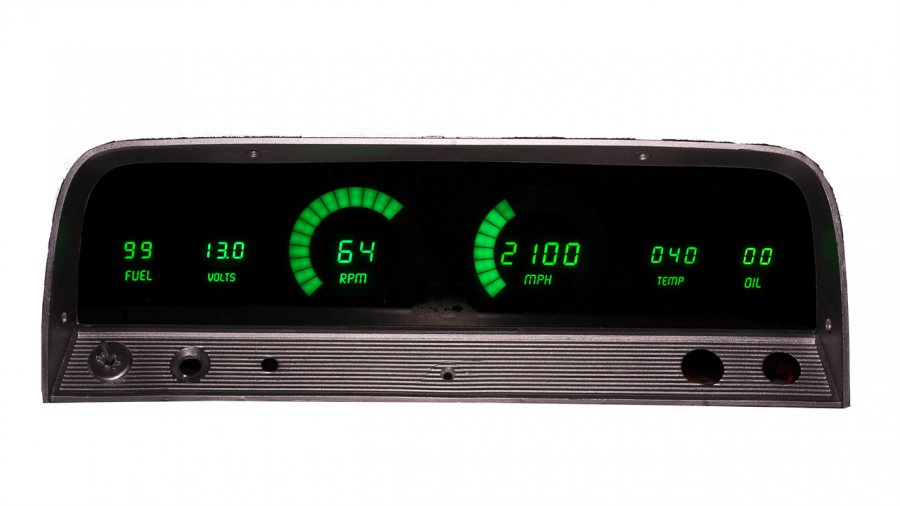

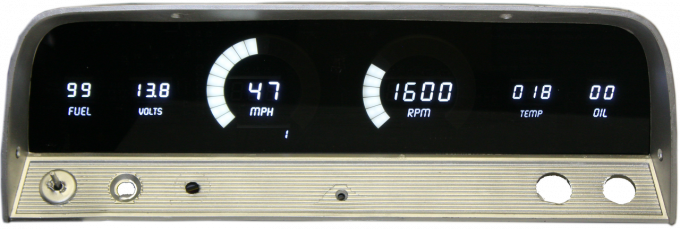

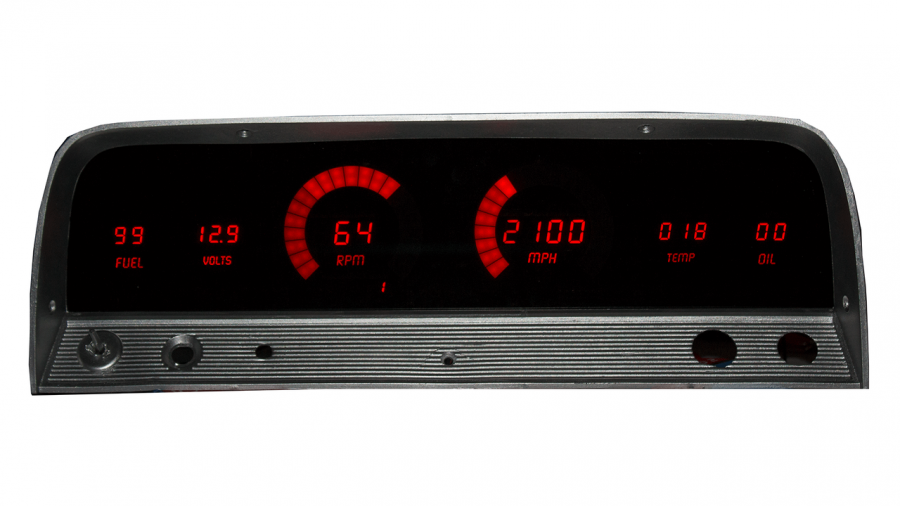

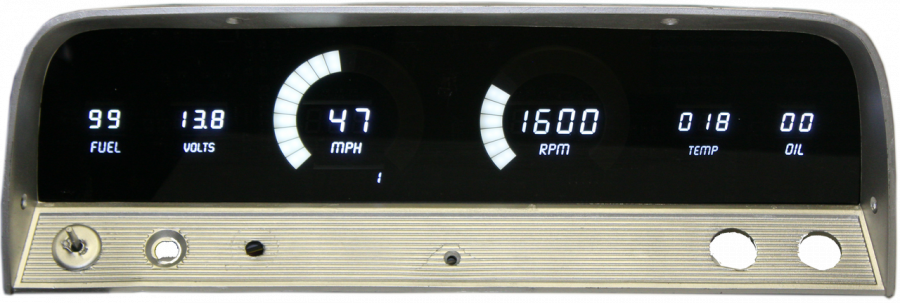

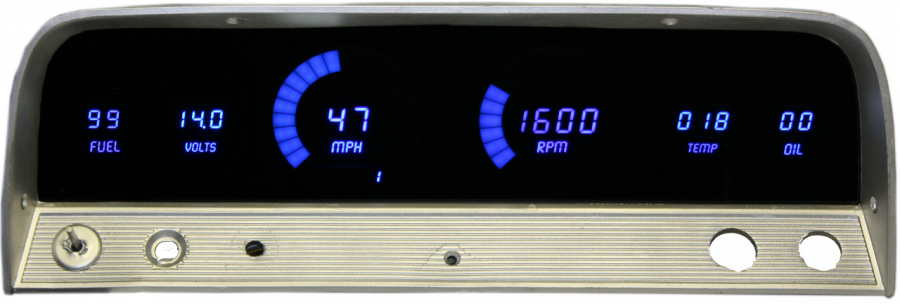

AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
Intellitronix Corp is an industry leader, manufacturing LED lighting and microprocessor-controlled LED products, which are first-class, energy-saving devices for the automotive electronic, marine, and recreational vehicle markets. Intellitronix has a wide range of best-selling automotive electronics, accessories, and digital gauges sold and distributed internationally. Intellitronix’s products are manufactured in a state-of-the-art facility in Eastlake, Ohio using top-quality materials and specialized equipment.
LEDs have become the powerhouse of the lighting world surpassing traditional light bulbs, television and computer screen illumination, being seen in trendsetting applications like headlights and taillights in cars, trucks, and daytime running and off-road lighting. Not only does Intellitronix understands the power and importance of utilizing LEDs but has the genius and expertise to put this knowledge into practice.
In addition, Intellitronix products have dominated areas of the marine industry with the creation of a unique, more efficient GPS controlled marine speedometer, and its Prometheus Ignition System to guard against ignition failures. The RV market is benefiting from Intellitronix new 4-IN-1 Energy Management Multifunctional System (EMMS) for recreational vehicles. The 4-in-1 unit incorporates energy management and load shedding, a breaker panel, automatic transfer switch, automatic generator starter plus display unit, Bluetooth, WiFi and multiplexing capabilities.
| Make | Model | Years |
| Chevrolet | C10 Panel | 1964 - 1966 |
| Chevrolet | C10 Pickup | 1964 - 1966 |
| Chevrolet | C20 Pickup | 1964 - 1966 |
| Chevrolet | C30 Panel | 1964 - 1966 |
| Chevrolet | C30 Pickup | 1964 - 1966 |
| Chevrolet | Corvair Truck | 1964 |
| Chevrolet | El Camino | 1964 - 1966 |
| Chevrolet | K10 Pickup | 1964 - 1966 |
| Chevrolet | K20 Pickup | 1964 - 1966 |
| Chevrolet | P10 Series | 1964 - 1966 |
| Chevrolet | P20 Series | 1964 - 1966 |
| Chevrolet | P30 Series | 1964 - 1966 |
| Chevrolet | Suburban | 1964 - 1966 |
| Color | Red, Blue, Green, White |
| Speedometer & Temperature | MPH & Fahrenheit, KMH & Celsius |
| Warranty | LIFETIME FACTORY WARRANTY |
