Chevy Truck & Suburban Classic Update Wiring Kit, 1947-1955 (1st Series)

Chevy Truck & Suburban Classic Update Wiring Kit, 1947-1955 (1st Series)
Chevy Truck & Suburban Classic Update Wiring Kit, 1947-1955 (1st Series)
$1,768.99 kt
NEWARRIVING SOONEstimated Ship Date 11/25/2024 (If Ordered Today)
Model: 3032232
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

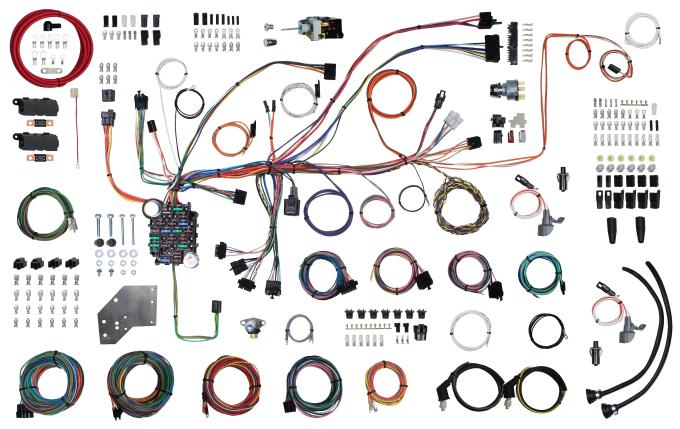

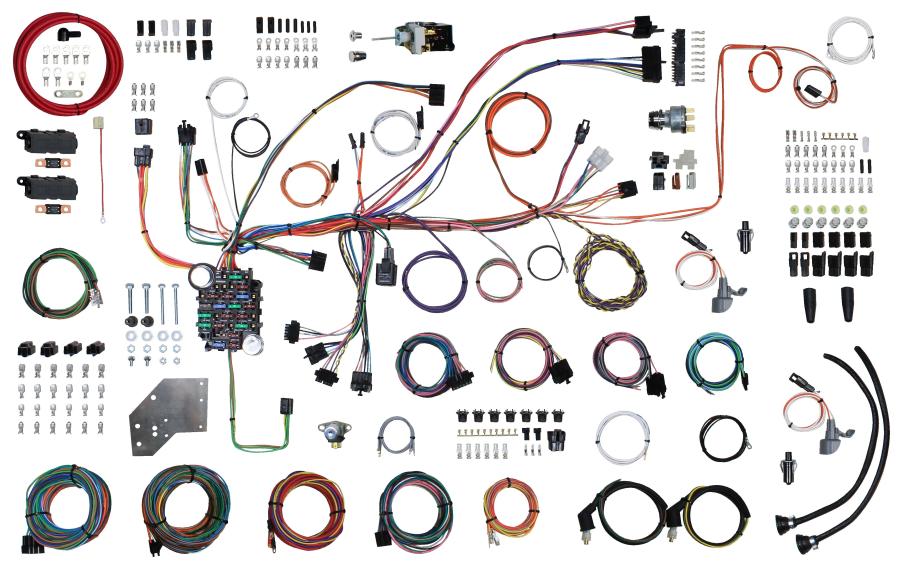

Classic Update kits are designed for projects that require more circuits than would have been available in an original chassis harness. Each kit includes all the basics needed to rewire a vehicle from headlight to tail light, and will accommodate popular add-on items such as electronic fuel injection, aftermarket gauges and common supporting modifications. This harness includes:

  • An updated ATC fuse panel and fuses, along with modern GXL wire throughout. Wire functions are labeled every 3 to 5 inches.
  • Pre-built dash harness and our exclusive gauge cluster disconnect system for use with stock or aftermarket instruments.
  • Engine and front light harness with extra-long leads for custom routing and updated engine and transmission combinations. Original-style bulkhead connectors included.
  • Six-way power accessory plug can be used as a convenient power source for aftermarket accessories.
  • A rear body wiring with extra-long leads for custom routing.
  • 175 amp mega fuse kit with 6 gauge charge cable to support a high output charging system and internally regulated alternator.
  • Original-replacement connectors, terminals and lamp sockets.
  • Headlight switch with 26 amp internal circuit breaker and new floor dimmer switch included.
  • Dash harness connector for the 69+ GM  steering column connector. A mating connector and terminals are included for easy adaption to popular late model columns.
  • Original replacement tube and grommet assemblies included.

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet 1500 1954
Chevrolet Fleetline Truck 1947 - 1952
Chevrolet Fleetmaster Truck 1947 - 1948
Chevrolet Sedan Delivery 1947 - 1955
Chevrolet Truck 1947 - 1955
