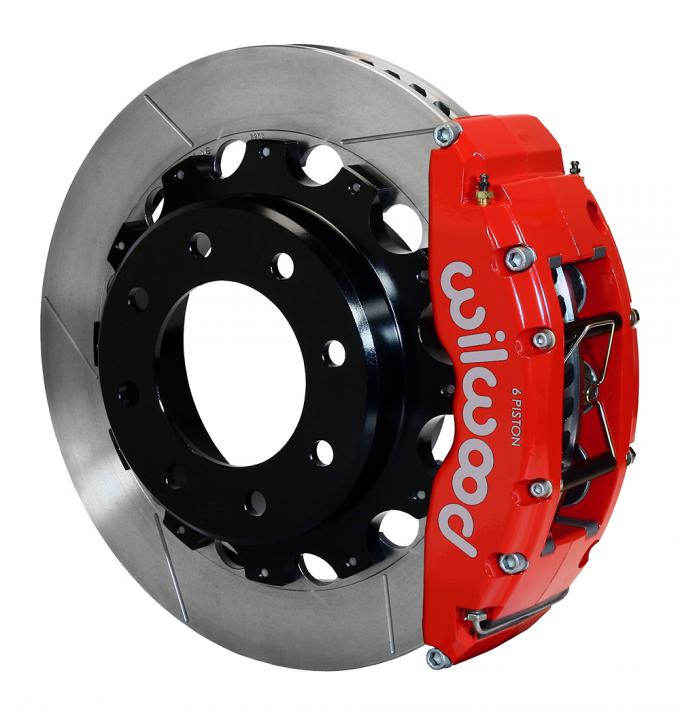

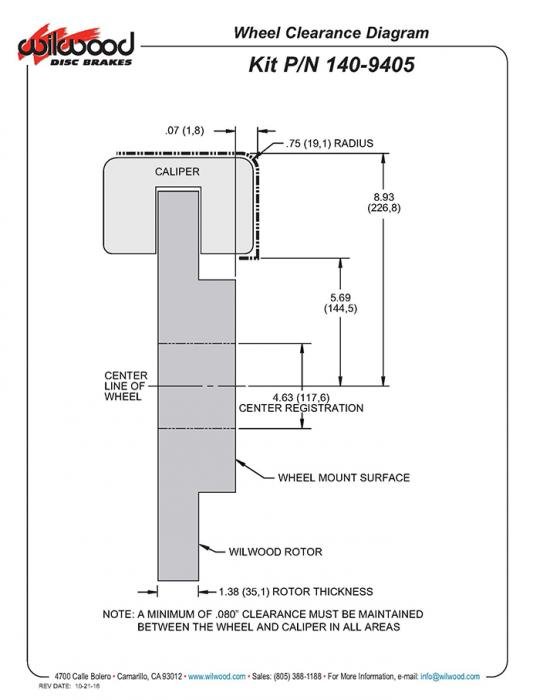

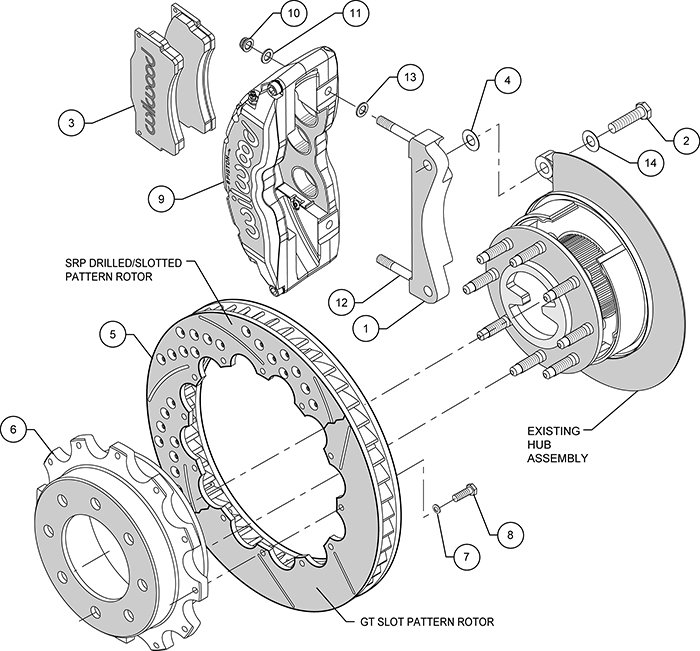

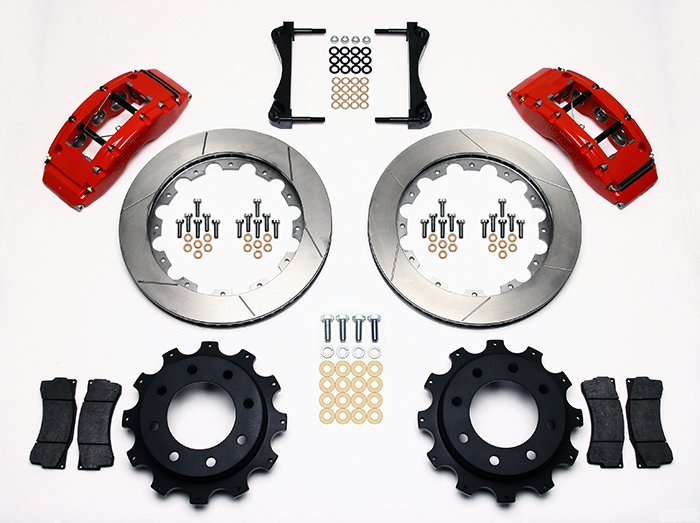

TC6R rear axle disc brake kits with 16” rotors are the ultimate big brake solution for highly customized and modified trucks or SUV’s upgraded to larger than stock wheels. TC6R kits can fit many 20”and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Download Name | File Size |
| ds556.pdf | 385.89KB |
| Make | Model | Years | Fitment Notes |
| Chevrolet | Silverado 1500 HD | 2001 - 2006 | KIT,REAR,H2/2500,99-UP,4.63 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT Fits axle with 4.63 center register only. 8 Lugs |
| Chevrolet | Silverado 1500 HD | 2003 - 2005 | KIT,REAR,H2/2500,99-UP,4.63 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT Fits axle with 4.63 center register only. 8 Lugs Except 4 Wheel Steering |
| Chevrolet | Silverado 2500 HD | 2001 - 2006 | KIT,REAR,H2/2500,99-UP,4.63 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT Fits axle with 4.63 center register only. 8 Lugs with 4.63 Center Hole Rear |
| Chevrolet | Silverado 2500 | 1999 - 2004 | KIT,REAR,H2/2500,99-UP,4.63 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT Fits axle with 4.63 center register only. 8 Lugs with 4.63 Center Hole Rear |
| Chevrolet | Suburban 2500 | 2000 - 2006 | KIT,REAR,H2/2500,99-UP,4.63 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT Fits axle with 4.63 center register only. 8 Lugs with 4.63 Center Hole Rear |
| GMC | Sierra 1500 HD | 2001 - 2006 | KIT,REAR,H2/2500,99-UP,4.63 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT Fits axle with 4.63 center register only. 8 Lugs |
| GMC | Sierra 1500 HD | 2003 - 2005 | KIT,REAR,H2/2500,99-UP,4.63 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT Fits axle with 4.63 center register only. 8 Lugs Except 4 Wheel Steering |
| GMC | Sierra 2500 HD | 2001 - 2006 | KIT,REAR,H2/2500,99-UP,4.63 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT Fits axle with 4.63 center register only. 8 Lugs with 4.63 Center Hole Rear |
| GMC | Sierra 2500 | 1999 - 2004 | KIT,REAR,H2/2500,99-UP,4.63 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT Fits axle with 4.63 center register only. 8 Lugs with 4.63 Center Hole Rear |
| GMC | Yukon XL 2500 | 2000 - 2006 | KIT,REAR,H2/2500,99-UP,4.63 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT Fits axle with 4.63 center register only. 8 Lugs with 4.63 Center Hole Rear |
| Details | |
| Part Type | Disc Brake Caliper / Rotor / Pad Kit |
| Kit Summary | |
| Axle Offset | 0.00 |
| Caliper Type | 6 - Red Powder Coat |
| Min Wheel Diameter Req'd* | 20 |
| Mount Type | Radial |
| Rear End Axle | OEM |
| Rotor Diameter | 16.00 |
| Kit Components & Specs / Rotors | |
| Bedded | No |
| Design Type | GT-BLK |
| Dynamically Balanced | Yes |
| Left Hand - Part No | 160-8954-GTB |
| Material | Spec-37 Iron |
| Outside Diameter (in) | 16.00 |
| Right Hand - Part No | 160-8953-GTB |
| Style | GT Slotted |
| Surface Finish | Black Electro Coat |
| Type | GT 60 Curved Vane |
| Vane Count | 60 CV |
| Width (in) | 1.38 |
| Parts & Accessories / Caliper Parts | |
| Bleed Screw Kit | 220-6069 |
| Bridge Bolt Kit | 230-9171 |
| Crossover Tube | 190-9172 |
| O-ring Kit | 130-3084 |
| Replacement Piston 1 | 200-7528 |
| Replacement Piston 2 | 200-7518 |
| Replacement Piston 3 | 200-7518 |
| Wear Plate - Left Hand | 300-8894 |
| Wear Plate - Right Hand | 300-8893 |
| Kit Components & Specs / Rotor Hats | |
| Bolt Circle 1 | 8 x 6.50 |
| Finish Color | Black E-Coat |
| Hat - Part No | 170-14028 |
| Hat Offset Dimension (in) | 1.780 |
| Material | Iron |
| Stud Diameter - BC 1 | 0.640 |
| Stud Diameter - BC 2 | 0.000 |
| Stud Diameter - BC 3 | 0.000 |
| Type | Parking Brake Hat - Truck |
| Kit Components & Specs / Calipers | |
| Brake Pad Area (In²) | 13 |
| Brake Pad Plate | 6318 |
| Brake Pad Volume (In³) | 6 |
| Finish Color | Red Powder Coat |
| Left Hand - Part No | 120-14318-FSR |
| Mount Type | Radial |
| Pad Compound | BP-10 |
| Piston 1 Bore (in) | 1.75 |
| Piston 2 Bore (in) | 1.38 |
| Piston 3 Bore (in) | 1.38 |
| Piston Area (In²) | 5.40 |
| Piston Count | 6 |
| Piston Type | Stainless |
| Right Hand - Part No | 120-14317-FSR |
| Type | TC6 |
| Parts & Accessories / Brake Lines | |
| Front Line Kit | 220-9811, 220-11196 |
