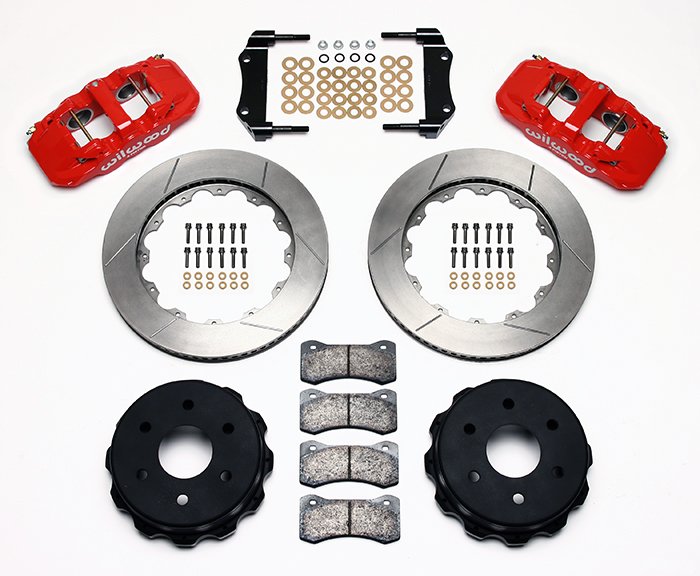

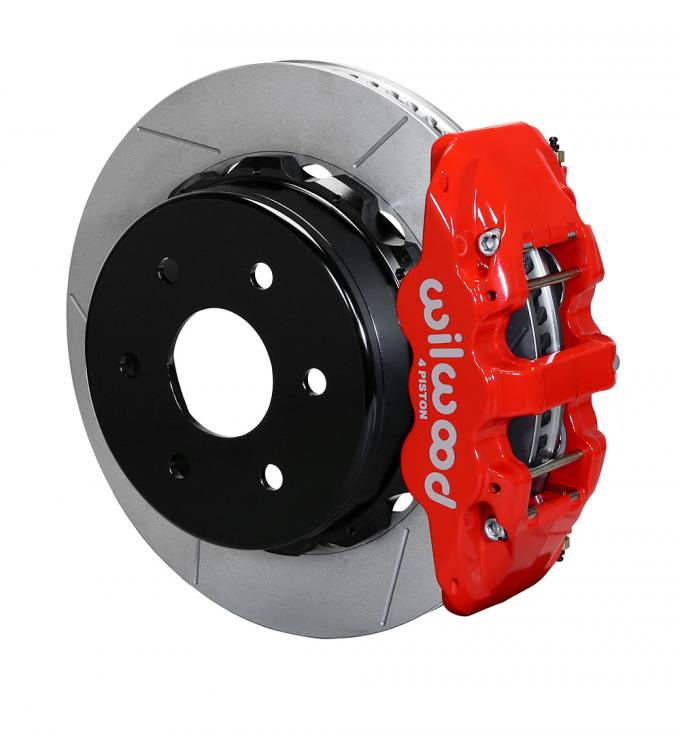

AERO4 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model trucks and SUV’s. High capacity braking from the AERO4 calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles, tow rigs, and all others with increased brake requirements from high GVW.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Download Name | File Size |
| ds570.pdf | 312.81KB |
| Make | Model | Years | Fitment Notes |
| Chevrolet | Avalanche 1500 | 2002 - 2006 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885. 6 Lugs |
| Chevrolet | Silverado 1500 | 2001 - 2006 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885. 6 Lugs with 2 Piston Rear Calipers with OE Heavy Duty Brakes |
| Chevrolet | Silverado 1500 | 2007 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979 6 Lugs Classic Design with 2 Piston Rear Calipers |
| Chevrolet | Suburban 1500 | 2000 - 2006 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885. 6 Lugs with 2 Piston Rear Calipers with OE Heavy Duty Brakes |
| Chevrolet | Tahoe | 2000 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885. 6 Lugs New Style with OE Heavy Duty 2 Piston Rear Calipers |
| Chevrolet | Tahoe | 2001 - 2006 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885. 6 Lugs with 2 Piston Rear Calipers with OE Heavy Duty Brakes |
| GMC | Sierra 1500 | 2001 - 2006 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885. 6 Lugs with 2 Piston Rear Calipers with OE Heavy Duty Brakes |
| GMC | Yukon XL 1500 | 2000 - 2006 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885. 6 Lugs with 2 Piston Rear Calipers with OE Heavy Duty Brakes |
| GMC | Yukon | 2000 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885. 6 Lugs Except Denali with 2 Piston Rear Calipers |
| GMC | Yukon | 2001 - 2006 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885. 6 Lugs with 2 Piston Rear Calipers with OE Heavy Duty Brakes |
| GMC | Yukon | 2002 | KIT,REAR,GM TRK/SUV,1500,99-UP,OE 2 PISTON CALIPER,14.25 ROTOR,RED; RTR:14.25-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT For OE rears with dual piston calipers. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885. 6 Lugs with OE Heavy Duty 2 Piston Rear Calipers with 2 Piston Rear Calipers with OE Heavy Duty Brakes |
| Details | |
| Part Type | Disc Brake Caliper / Rotor / Pad Kit |
| Kit Summary | |
| Axle Offset | 0.00 |
| Caliper Type | 4 - Red Powder Coat |
| Min Wheel Diameter Req'd* | 18 |
| Mount Type | Radial |
| Rear End Axle | OEM |
| Rotor Diameter | 14.25 |
| Kit Components & Specs / Rotors | |
| Bedded | No |
| Design Type | GT-BLK |
| Dynamically Balanced | Yes |
| Left Hand - Part No | 160-9788-GTB |
| Material | Spec-37 Iron |
| Outside Diameter (in) | 14.25 |
| Right Hand - Part No | 160-9787-GTB |
| Style | GT Slotted |
| Surface Finish | Black Electro Coat |
| Type | GT 72 Curved Vane |
| Vane Count | 72 CV |
| Width (in) | 1.25 |
| Parts & Accessories / Caliper Parts | |
| Bleed Screw Kit | 220-0627 |
| O-ring Kit | 130-5100 |
| Replacement Piston 1 | 200-7521 |
| Replacement Piston 2 | 200-7519 |
| Wear Plate - Left Hand | 300-5876 |
| Wear Plate - Right Hand | 300-5876 |
| Kit Components & Specs / Rotor Hats | |
| Bolt Circle 1 | 6 X 5.50 |
| Finish Color | Black E-Coat |
| Hat - Part No | 170-9890 |
| Hat Offset Dimension (in) | 2.340 |
| Material | Iron |
| Stud Diameter - BC 1 | 0.630 |
| Stud Diameter - BC 2 | 0.000 |
| Stud Diameter - BC 3 | 0.000 |
| Type | Parking Brake Hat - Truck |
| Parts & Accessories / Hat | |
| Bolt Kit | 230-8217 |
| Kit Components & Specs / Calipers | |
| Brake Pad Area (In²) | 11.1 |
| Brake Pad Plate | 6617 |
| Brake Pad Volume (In³) | 5.2 |
| Finish Color | Red Powder Coat |
| Left Hand - Part No | 120-13286-RD |
| Mount Type | Radial |
| Pad Compound | BP-20 |
| Piston 1 Bore (in) | 1.88 |
| Piston 2 Bore (in) | 1.62 |
| Piston Area (In²) | 4.84 |
| Piston Count | 4 |
| Piston Type | Stainless |
| Right Hand - Part No | 120-13285-RD |
| Type | AERO4 |
| Parts & Accessories / Brake Lines | |
| Front Line Kit | 220-11196, 220-9886 |
