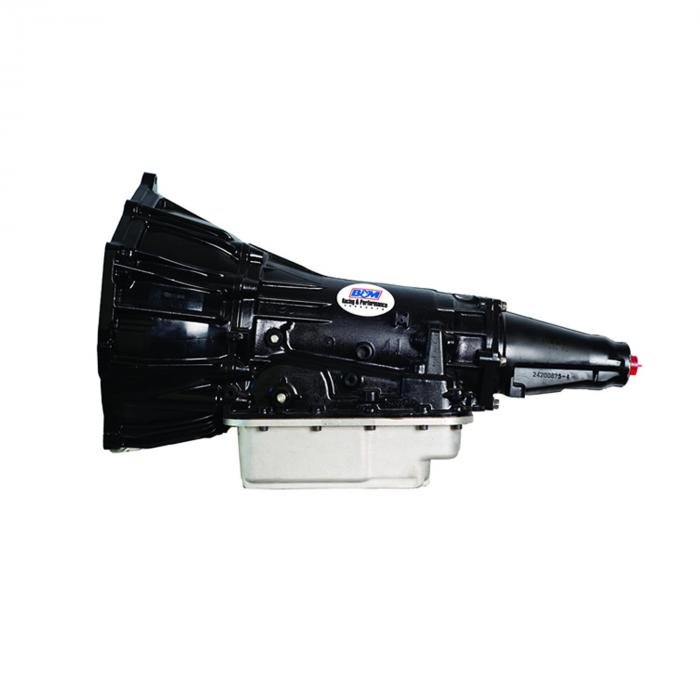

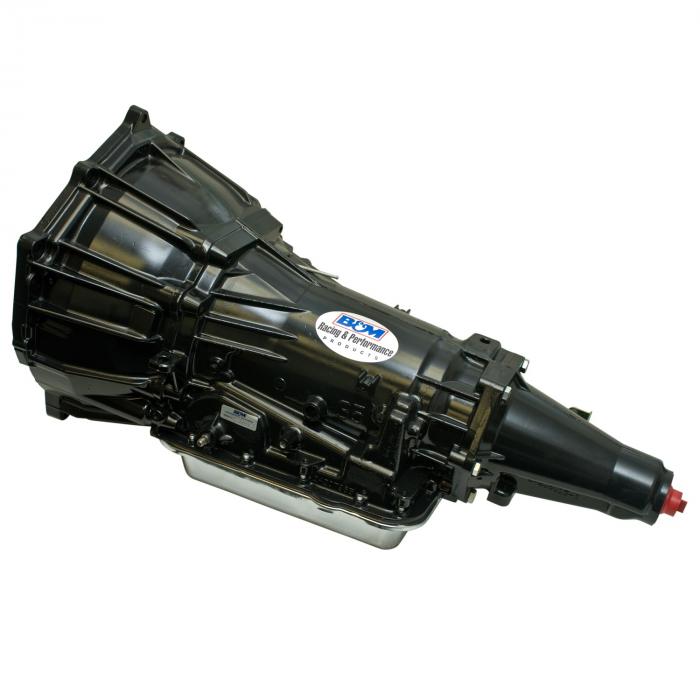

B&M Street/Strip Automatic Transmission, LS Engine 4L60E 117308

B&M Street/Strip Automatic Transmission, LS Engine 4L60E 117308
B&M Street/Strip Automatic Transmission, LS Engine 4L60E 117308B&M Street/Strip Automatic Transmission, LS Engine 4L60E 117308
$6,926.99 ea
NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)10 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/22/2024
Model: 3998118
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
TRUCK
FREIGHT
STORE PICKUP
[More Info]
The legendary B&M transmissions for street use are a complete ready to run unit (less converter) for high performance street and mild strip use. The Street/Strip GM 4L60E is a must have for those wanting a high performance overdrive transmission. The years of experience and skills that B&M has gained at the track have been applied to these transmissions. Several parts have been replaced to assure optimal performance including replacing the factory friction plates with high performance friction plates, a re-calibrated valve body, Beast Sunshell, reinforced input drum, all new solenoids, wiring harness along with a rebuilt performance pump to assure optimum flow rate even in demanding conditions. A chrome transmission pan is installed to contain the fluid, but is aesthetically pleasing as well. The list goes on and on, which makes the Street/Strip GM 4L60E transmissions a very desirable unit. The transmission provides firm shifts and features a standard shift pattern, these are the finest available for street and strip use. Notes: We strongly recommend protecting your investment by adding a B&M Hi-Tek SuperCooler with all new transmission installations. Max 550 HP / 450 Ft/Lbs.
Features:
  • Includes Chrome Standard Depth Transmission Pan
  • 8 Count 3-4 Friction Pack with Koleen Steels
  • All New High Performance Friction Plates
  • All New Solenoids & Wiring Harness
  • Billet Corvette 4th Gear Servo
  • Fully Re-calibrated Valve Body
  • 29 Element Dual Cage Sprag
  • Heavy Duty Beast Sunshell
  • Seven Hole LS Bellhousing
  • Reinforced Input Drum
  • Forward Shift Pattern
Fits 1998-2006 GM 4L60E (Electronic Shift Model) for LS Engines, 2-Wheel Drive. Does not replace 4L60 (manual shift model). Transmission shipped without speedometer drive gear.
Installation Notes:
Fits 1998-2006 GM 4L60E (Electronic Shift Model) for LS Engines, 2-Wheel Drive. Does not replace 4L60 (manual shift model). Transmission shipped without speedometer drive gear.

About B&M Racing

B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.

Downloads:

Download Name File Size
bm_warranty.pdf87.47KB
117308_instruction.pdf235.46KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine
Chevrolet Avalanche 1500 2006 5.3L / 325 / V8
Chevrolet C1500 Suburban 1998 5.7L / 350 / V8
Chevrolet C1500 Suburban 1999 5.7L / 350 / V8
Chevrolet C1500 1998 5.7L / 350 / V8
Chevrolet C1500 1999 5.7L / 350 / V8
Chevrolet C2500 1998 5.7L / 350 / V8
Chevrolet K1500 Suburban 1998 5.7L / 350 / V8
Chevrolet K1500 Suburban 1999 5.7L / 350 / V8
Chevrolet K1500 1998 5.7L / 350 / V8
Chevrolet K1500 1999 5.7L / 350 / V8
Chevrolet K2500 1998 5.7L / 350 / V8
Chevrolet Silverado 1500 1999 5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Silverado 1500 2000 5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Silverado 1500 2001 5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Silverado 1500 2002 5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Silverado 1500 2003 6.0L / 364 / V8
5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Silverado 1500 2004 4.8L / 294 / V8
Chevrolet Silverado 1500 2005 6.0L / 364 / V8
4.8L / 294 / V8
Chevrolet Silverado 1500 2006 6.0L / 364 / V8
5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Silverado 2500 1999 6.0L / 364 / V8
Chevrolet Silverado 2500 2000 6.0L / 364 / V8
Chevrolet Silverado 2500 2001 6.0L / 364 / V8
Chevrolet Suburban 1500 2006 6.0L / 364 / V8
5.3L / 325 / V8
Chevrolet Suburban 2500 2000 6.0L / 364 / V8
Chevrolet Tahoe 1998 5.7L / 350 / V8
Chevrolet Tahoe 1999 5.7L / 350 / V8
Chevrolet Tahoe 2000 5.3L / 325 / V8
4.8L / 294 / V8
5.7L / 350 / V8
Chevrolet Tahoe 2001 5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Tahoe 2002 5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Tahoe 2003 5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Tahoe 2004 5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Tahoe 2005 5.3L / 325 / V8
4.8L / 294 / V8
Chevrolet Tahoe 2006 4.8L / 294 / V8
5.3L / 325 / V8
GMC C1500 Suburban 1998 5.7L / 350 / V8
GMC C1500 Suburban 1999 5.7L / 350 / V8
GMC C1500 1998 5.7L / 350 / V8
GMC C1500 1999 5.7L / 350 / V8
GMC C2500 1998 5.7L / 350 / V8
GMC K1500 Suburban 1998 5.7L / 350 / V8
GMC K1500 Suburban 1999 5.7L / 350 / V8
GMC K1500 1998 5.7L / 350 / V8
GMC K1500 1999 5.7L / 350 / V8
GMC K2500 1998 5.7L / 350 / V8
GMC Sierra 1500 1999 4.8L / 294 / V8
GMC Sierra 1500 2000 4.8L / 294 / V8
GMC Sierra 1500 2001 4.8L / 294 / V8
GMC Sierra 1500 2002 4.8L / 294 / V8
GMC Sierra 1500 2003 4.8L / 294 / V8
GMC Sierra 1500 2004 4.8L / 294 / V8
GMC Sierra 1500 2005 4.8L / 294 / V8
6.0L / 364 / V8
GMC Sierra 1500 2006 4.8L / 294 / V8
6.0L / 364 / V8
5.3L / 325 / V8
GMC Sierra 2500 1999 6.0L / 364 / V8
GMC Sierra 2500 2000 6.0L / 364 / V8
GMC Sierra 2500 2001 6.0L / 364 / V8
GMC Yukon XL 1500 2006 5.3L / 325 / V8
GMC Yukon XL 2500 2000 6.0L / 364 / V8
GMC Yukon 1998 5.7L / 350 / V8
GMC Yukon 1999 5.7L / 350 / V8
GMC Yukon 2000 5.7L / 350 / V8
4.8L / 294 / V8
GMC Yukon 2001 6.0L / 364 / V8
4.8L / 294 / V8
GMC Yukon 2002 6.0L / 364 / V8
4.8L / 294 / V8
GMC Yukon 2003 4.8L / 294 / V8
GMC Yukon 2004 4.8L / 294 / V8
GMC Yukon 2005 6.0L / 364 / V8
4.8L / 294 / V8
5.3L / 325 / V8
GMC Yukon 2006 4.8L / 294 / V8
5.3L / 325 / V8

Specifications:

2WD/4WD 2WD
Automotive Item Grade High Performance
Built-In Transmission Shield No
California Proposition 65 Chemical Name Chromium (hexavalent compounds), Benzene, Lead
Case Material Cast Aluminum
Color Black
Control Type Hydraulic
Cooler Included No, No
Core Change Applicable No
Dipstick Included No, No
Disclaimer Transmission shipped without speedometer driven gear or housing
Drive Type RWD
Emission Code 5
Friction Plates New
Gear Ratio-First 3.06
Gear Ratio-Fourth 0.70
Gear Ratio-Second 1.63
Gear Ratio-Third 1.00
Horsepower Rating (HP) 500
Horsepower Rating (HP) 500
Part Type Automatic Transmission Assembly, High Performance, High Performance
Product Type Transmission
Proposition 65 www.P65Warnings.ca.gov
Reverse Gear Ratio 2.29
Torque Converter Included No
Torque Rating (Ft/Lbs) 450
Transbrake No
Transmission Model 4L60E
Transmission Series Street/Strip
Transmission Speeds 4
Transmission Type Automatic
Valve Body Pattern Forward
Valve Body Type Automatic
Warranty 90 Day Limited Warranty. Warranty claims must be submitted directly to B/M TX
Warranty Time 3 Months
